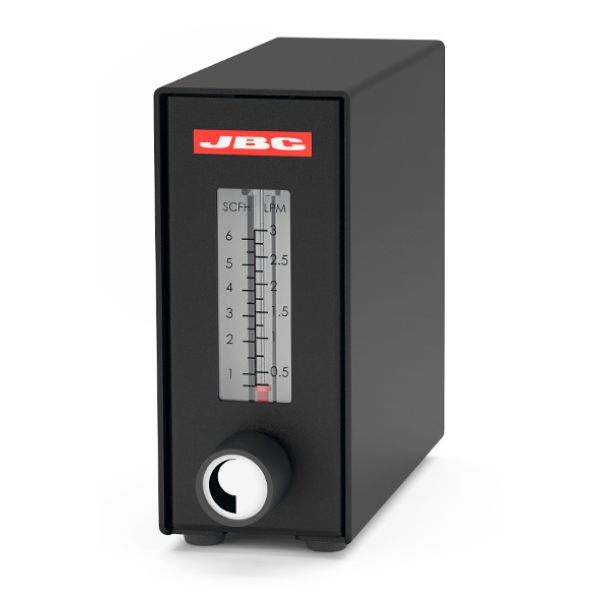

JBC MN-A Nitrogen flow regulator for DI
Nitrogen improves the quality of any solder joint because it provides extra heat and helps prevent tip oxidation.
The MN-A regulates nitrogen flow to the soldering tip in order to optimize consumption.
It automatically activates the flow when you remove the T245-NA handpiece from the stand. The flow stops when the tool is placed back
and the tip temperature drops to the sleep mode.
It requires the GN-A generator or an available nitrogen supply at the operator's bench.
The MN-A works with DI control unit and the discontinued DD or DM.
|Weight||1.2 kg (2.7 lb)|
|Size||50 x 120 x 130 mm|
|Voltage(AC)||24V (from control unit)|
|N2 flow regulation||0.5 - 3 SLPM|
|Max. pressure||6 Bar|
|Ambient operating temp.||10-40 ºC / 50-104 ºF|
|Package weight||1.4 kg (3.1 lb)|
|Package dimensions||260 x 125 x 83 mm|
