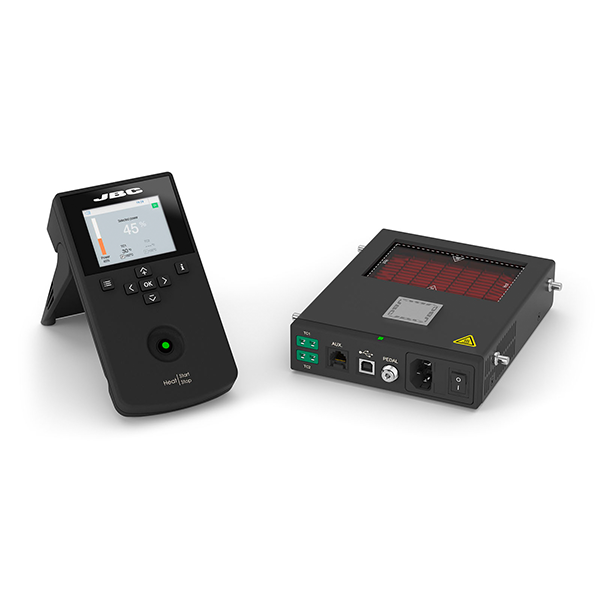

JBC PHNE Nano Preheater

The PHNE Preheater is designed for precise rework on small PCBAs, such as those commonly found in smartphones.

It provides a heating area of 108 x 70 mm (4.25 x 2.75 in.) and includes two thermocouple (TC) connections. Operation is simple and intuitive thanks to its user-friendly menu navigation.

With excellent temperature accuracy and control, the PHNE minimizes the risk of component damage and reduces the likelihood of thermal shock during PCB rework.

Three work modes:

Power Mode

Operates at a fixed power level, with the option to connect a protection thermocouple.

Temperature Mode

Maintains the PCBA at a selected temperature using the regulation thermocouple, with optional protection thermocouples for added safety.

Profile Mode

Controls the heating rate for PCBs using a regulation thermocouple and optional protection thermocouple. It includes up to 22 customizable profiles to adapt heating to each application without exceeding recommended limits.

Compatibility & Accessories

The PSN Nano PCB Support adapts to virtually any PCB with multiple adjustable components. It can also integrate seamlessly with fume extraction equipment, allowing simultaneous operation for an optimal rework process.

Two Thermocouple

Two thermocouples can be connected in any of the three operating modes for precise monitoring.

Key Features:
