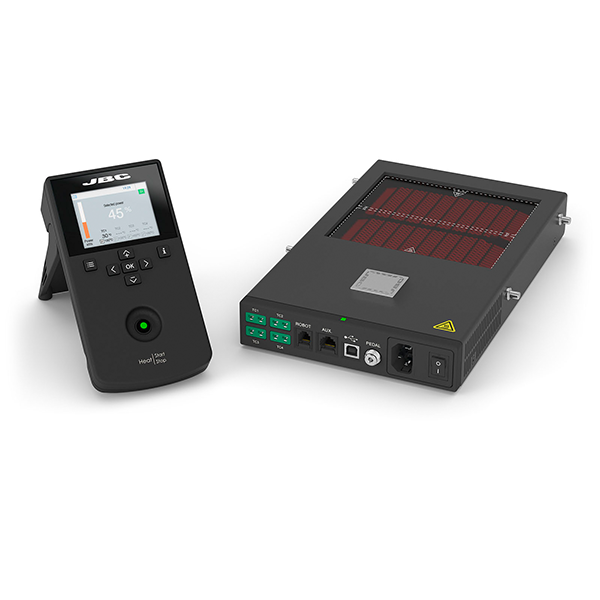

JBC PHSE Small Preheater

The PHSE Preheater is designed for precise rework on small to medium PCBAs, such as those commonly used in the electronics industry.

It provides a heating area of 130 x 135 mm (5 x 5 in.) and includes four thermocouple (TC) connections. Operation is simple and intuitive thanks to its user-friendly menu navigation.

With excellent temperature accuracy and control, the PHSE minimises the risk of component damage and reduces the likelihood of thermal shock during PCB rework.

Three work modes:

Power Mode

Operates at a fixed power level, with the option to connect a protection thermocouple.

Temperature Mode

Maintains the PCBA at a selected temperature using the regulation thermocouple, with optional protection thermocouples for added safety.

Profile Mode

Controls the heating rate for PCBs using a regulation thermocouple and an optional protection thermocouple. It includes up to 25 customizable profiles to adapt heating to each application without exceeding recommended limits.

Compatibility & Accessories

The PSS Multiaxis PCB Support adapts to virtually any PCB with multiple adjustable components. It can also integrate seamlessly with fume extraction equipment, allowing simultaneous operation for an optimal rework process.

Four Thermocouple

Four thermocouples can be connected in any of the three operating modes for precise monitoring.

Key Features:
