SAC305 No Clean Solder Paste - Lead-Free - LFM-48 GT(R)SR -12% ROL1 Flux

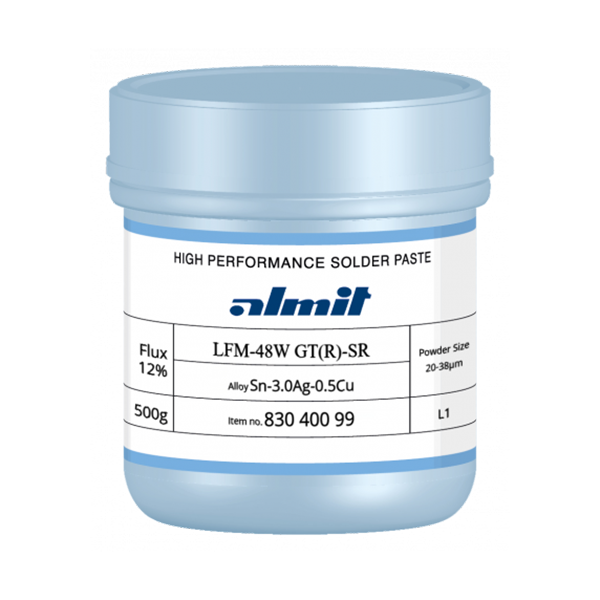

LFM-48 GT(R)SR 12% - SAC305 Lead Free, No-Clean Solder Paste
Alloy – SAC305 (Sn-3.0Ag-0.5Cu)
Melting Range – 217-220 °C
The NH-IMT is the L0 all rounder among the Almit solder paste range. It provides excellent flow behaviour with optimal wetting on many different surfaces. This makes it in no way inferior ro an L1 solder paste.
Minimise defects in your SMT process with LFM-48 solder paste. It provides better wetting on unique metals with a wide process window – designed for PIP.
LFM-48W provides good printing on small apertures, with improved interval printing properties.
*This product has a shelf life of 6 months from manufacturing date
Available In:
Jar
Syringe
Available Versions
| Type | Product Code | Package |
| 10-28 µ | 830 500 99 | LFM-48U 500g Jar |
| 20-38 µ | 830 400 99 | LFM-48W 500g Jar |
| 20-38 µ | 816 300 35 | LFM-48W 1kg Syringe |
