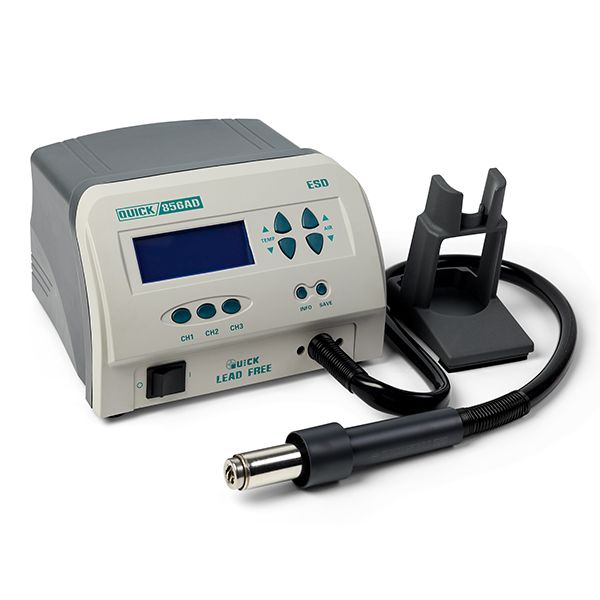

Quick 856AD Hot Air Rework Station Programmable

Quick 856AD Hot Air Rework Station Programmable 1300W



The Quick 856AD is a 1300 watt hot air rework station. This product features three user programmable channels, which enables custom settings for airflow and temperature. Has a maximum airflow 200L/min, and a maximum temperature of approximately 930 F. This product is designed for professional soldering electronic components using lead free solders.



Key Features:

  • Set your airflow and temperature with the three regular channels "CH1, CH2, CH3".
  • Large LCD display shows temperature, air volume, working time etc.
  • Password protection and key-lock functions, prevent menu from being changed at will
  • Unit enters sleep mode when handle is placed on the holder
  • Easy real time operatio, auto sleeping function available, parameters can br set in sleeping mode
  • Closed loop sensor. Temperature can be controlled by zero voltage triggering modes, and adjusted conveniently, accurate and stable, not affected by airflow
  • A multipurpose unit, having brushless whirlpool motor, wide range and stepless adjustable airflow
  • Auto cooling function available, long lifetime ceramic heater
  • Particularly suitable for desoldering the parts which require large amount of thermal energy & lower temperature, such as mounted socket shielding cover.
  • Comes complete with three angled round nozzles - A2064 6.4mm, A2084 8.4mm and A2127 12.7mm diameter

Product Composition:

1 x SMD Rework Station


Other Versions:

The DE & DW.

The main difference between the two is that the DW has a 1300W heater and 200L air flow, whereas the DW has a 1000w heater with 120L air flow..

More Information
General Specifications
Model Quick 856AD
Power 1300W
Operating voltage AC 220V
Temperature range 100℃-500℃
Working time 1-999 s
Air volume range 6-200 Class
Vacuum pressure 600 mm HG (only for QUICK 856X)
Overall dimensions 250*230*150 (mm)
Weight About 3.8 kg





Write Your Own Review
You're reviewing:Quick 856AD Hot Air Rework Station Programmable
Your Rating
Customer Questions
What is the difference between the Quick 861DE and Quick 856AD models?

The difference between these two models of Quick hot air rework stations is that the Quick 856AD is the newer version of the range.

The 856AD comes with a larger LCD which allows for multiple profiles to be set. Accompanying this is a more powerful 1300w heater, which has a faster heating time!

What are the replacement nozzles for the Quick 856AD unit?

Please see below the part numbers, link and description of the nozzles compatible with this unit:

SKU (click to view product) Description
450-A3136 PLCC - 20x20mm
450-A3137 PLCC - 25x25mm
450-A3138 PLCC - 30x30mm
450-A3125 QFP - 10x10mm
450-A3140 QFP - 11.5x11.5mm
450-A3141 QFP 11.5x14mm
450-A3139 QFP - 12.5x7.3mm
450-A3126 QFP - 14x14mm
450-A3128 QFP - 14x20mm
450-A3180 QFP - 17x17mm
450-A3135 QFP - 17.5x17.5mm
450-A3186 QFP - 18x10mm
450-A3184 QFP - 18x8mm
450-A3181 QFP - 19x19mm
450-A3182 QFP - 24x24mm
450-A3129 QFP - 28x28mm
