SK P9-10 SAC305 – Lead-Free, Halogen Free, No Clean Solder Paste | T4 & T5 Variants
SK P9-10 SAC305 Halogen Free Solder Paste (T4 & T5)
This item is shipped directly from the manufacturer therefore is not eligible for free delivery.
P9-10 Solder Paste
Alloy - SAC305
Halogen-Free solder paste is formulated for lead-free surface mount assemblies, requiring excellent defect-free soldering, covering a wide range of applications.
SK P9-10 provides an excellent solder joint appearance, whilst leaving clear and clean post-soldered residue.
This solder paste has been tested to industry standards including J-STD 004B and Bellcore (ECM). Solder paste residues can be considered safe to remain on an assembly when no-clean technology is appropriate to the assembly end-use.
S9-10 also offers an excellent print definition for both fine and ultra-fine pitch printing, with extended tack and open times exceeding 3 days.
Available in both Type 4 & Type 5.
Availability
P9-10 SAC305 is available in both Type 4 & 5 powder size.
SolderKing manufacture all solder pastes within the UK – Speak to a member of our team should you have any bespoke solder paste requirements.
Check the availability below for P9-10:
| Flux | Packaging |
| P9-10 88.5% 20-38μm (T4) | 1000g, 500g, 250g tub |
| P9-10 88.5% 20-38μm (T4) | 40g, 75g syringe |
| P9-10 88.5% 20-38μm (T4) | 500g, 600g cartridge |
| P9-10 88.25% 15-25μm (T5) | 500g, 600g cartridge |
Benefits Of P9-10 SAC305 Halogen-Free Solder Paste
- Halogen free for increased reliability.
- High reliability flux type (ROL0 to J-STD 004B).
- Reduces & eliminates voiding and head-in pillow defects.
- Powerful wetting for all board finishes.
- Shiny finish with clear, minimal residue.
- Long tack and open times.
- 12 month shelf life (when refrigerated).
- Easy to use
- UK manufactured.

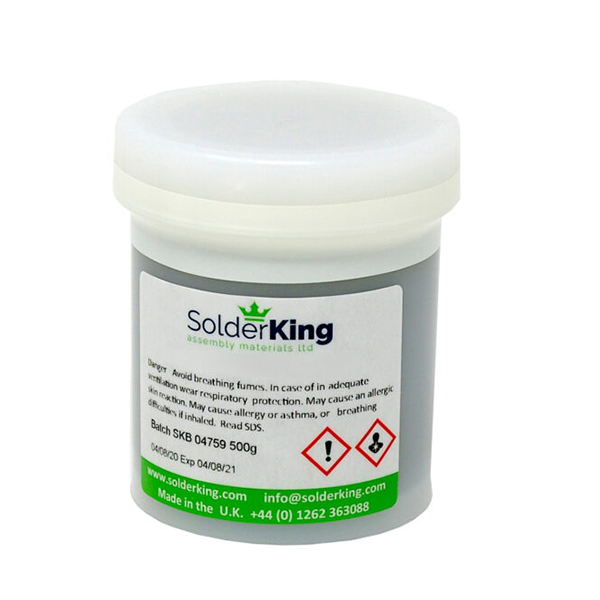

*Picture may not be of the actual product
