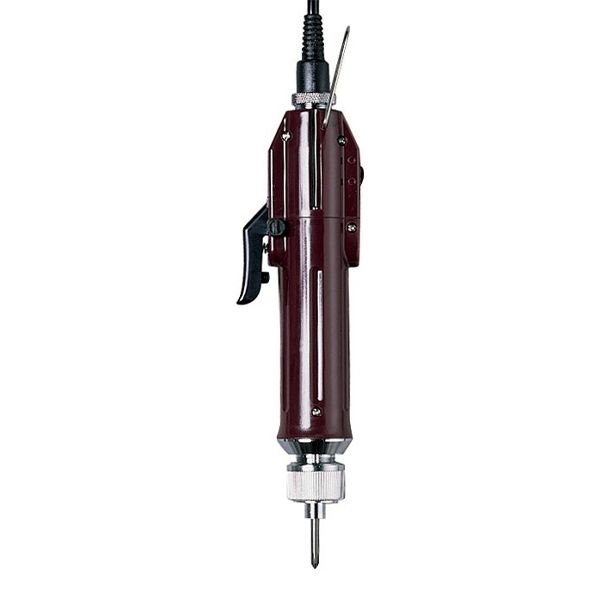

HIOS CL-4000NL Electric Screwdriver | Lever Start | 0.1 - 0.55Nm

HIOS CL-4000NL Lever Start Electric Screwdriver - 0.1 - 0.55 Nm



Handle low-torque screw tightening with confidence!

This screwdriver is especially designed to deliver low torque for accurate and stable tightening of screws in small sizes.

Compact and light-weight design makes it easy for operators to use.

With safety design running on low voltage and direct current, these screwdrivers can be used safely.





Key Features Of The CL Push To Start Range:

  • Straight trigger start electric and reversible screwdrivers
  • External torque adjustment
  • Auto shut off
  • Output Torque Range: Nm 0.1 - 0.55, lbf in 0.9 - 4.8, (kgf cm) (1 - 5.5)
  • Speed Hi 1000 Low 690rpm
  • Screw Size: Small Screw Size 1.4 - 2.6mm Tapping Screws 1.4 - 2.3mm
  • Torque setting stepless
  • 1/4 Hex Bit





Suction (Vacuum) attachments are available for this unit, including:

(A) Mouthpiece model F3-Standard18mm
(B) Bit length H4 60mm
(C) Suction attachment model
  • CLQ4-SET
  • CLQ4-SET-ESD





Other Drivers In The HIOS CL Range

CL65000 ESD
Model CL-6500
Driver Type Lever Start
SKU - 280-CL6500NLX
Torque Range 0.3-1.6 Nm
Driver Size H5
ESD Safe No
Rotation Speed 600-900
View / Buy Here
CL7000
Model CL-7000
Driver Type Lever Start
SKU - 280-CL-7000-NLX
Torque Range 0.3-2.5 Nm
Driver Size H5
ESD Safe No
Rotation Speed 750 Max
View / Buy Here
More Information
General Specifications
Start Lever Start Type
Output Torque Range 0.1-0.55 Nm
  0.9-4.8 lb.in
  1-5.5 kg.cm
Torque Switching Stepless Adjustment
Unloaded Rotation Speed(r.p.m) 690-1000
Screw Size(mm) 1.4-2.6mm
  1.4-2.3 Tapping
Bit (selectable)※ H4 Hios Shank
  1/4HEX or 5HEX Shank
Power Supply CLT-70STC3
  CLT-60
External Dimensions(mm) 32.5 mm Grip
  197 mm Length
Accessories


+#0(φ2.5×40mm) H4

+#1(φ4.0×40mm) H4

  +♯1 (5.0×50mm) 1/4 Hex
+♯2 (5.0×50mm) 1/4 Hex
- (5.0×50mm) 1/4 Hex
  Blue Spring
  Cord Length 1.5m (5p)
Carbon brush order code CL4-0420 (1pair)
Torque Range Table CL4000 Torque Range
