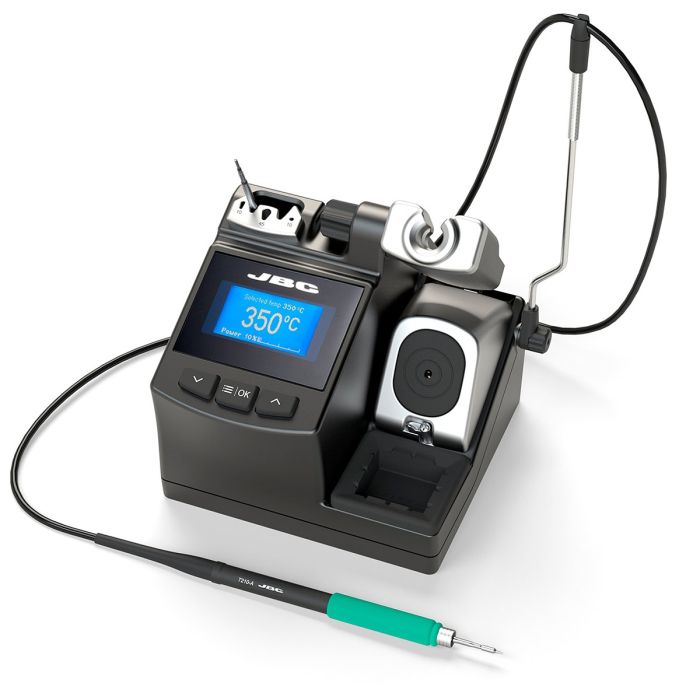

JBC CD-2SQE Precision Soldering Station

JBC CD-2SQE Precision Soldering Station



All orders will be automatically upgraded to the latest JBC CD-2SQF

The CD-S Soldering Station comes with the lightest and ergonomic T210 Handpiece.

It is compatible with a vast range of over 150 C210 Cartridges with options to suit any application.

*Cartridges not included



The CD-S is a soldering station with the JBC Advanced system for precision applications, the ideal tool to use when working on small components.

It provides the best soldering quality thanks to the JBC exclusive heating system and the intelligent sleep & hibernation features that extend the life of the tips by 5x.

Using the menu you can personalize over 20 parameters to help manage the soldering process.

It features a USB connector to update software, create graphs and manage parameters from a PC.

Complete cleaning system with an antisplash membrane to keep the work area clean. Use the integrated wiper to remove excess solder from the tip. The Cartridge extractor facilitates fast and safe cartridge changes.



Product Composition

1 x Control Unit: CD-2EK with Tip Cleaning system
1 x Tools: T210-A General Purpose Handle
1 x Cartridges: None included
Consumable: S0354CL6210

More Information
General Specifications
Selectable Temperature 90 to 450 ºC / 190 to 840 ºF
CONNECTIVITY
USB-B Software PC / Firmware update
Equipotential bonding Optional connection to EPA
ESD/EOS
ESD safe
Tip to ground resistance <2 ohms
Tip to ground voltage <2 mV RMS
POWER SUPPLY
Peak power 40 W - 23,5 V
Voltage (AC) CD-2SQE - 230 V
Ambient operating temp. 10 to 50 ºC / 50 to 120 ºF
DIMENSIONS AND WEIGHT
Control Unit

150 x 175 x 145 mm / 2.67 kg

5.9 x 6.9 x 5.7 in / 5.88 lb

Package

234 x 234 x 258 mm / 3.10 kg

9.2 x 9.2 x 10.2 in / 6.82 lb

Compact Stations: CD
Tools: T210-A
Write Your Own Review
You're reviewing:JBC CD-2SQE Precision Soldering Station
Your Rating
Customer Questions
Can I use a tweezer handpiece with the JBC CD stations?

Unfortunately, no. You would not be able to plug a tweezer handpeice into this station as the connection point is a different shape. If the application that you are undertaking requires the use of a tweezer handpiece, please see either the CP stations or NASE-2C.
