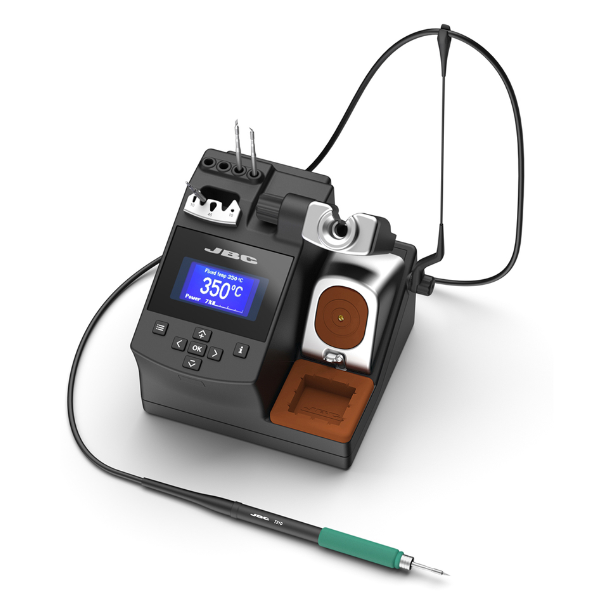

JBC CD-2SQF Precision Soldering Station

JBC CD-2SQF Precision Soldering Station



Newly Upgraded from the JBC CD-2SQE. More intuitive and well-connected!



This station is ideal when working on populated PCBs or under a magnifying glass.

It uses the T210-A Precision Purpose Handle, the perfect handpiece for accuracy soldering jobs with medium power requirements.

The new F version includes

• Allows for easy and fast configuration thanks to the addition of the 7-key keypad.

• Store up to four cartridges along with cartridge collectors and extractors.

• Easily connect the station to the JBC Fume Extractor (RJ12 connector for data transfer)



The soldering quality is second to none, thanks to JBC's Most Efficient Soldering System, along with the Sleep & Hibernation Modes, which help to extend the tip life of your soldering cartridges.



Complete cleaning system with an antisplash membrane to keep the work area clean. Use the integrated wiper to remove excess solder from the tip. The Cartridge extractor facilitates fast and safe cartridge changes.





(Cartridges NOT included)

For Version That Include Tips Please See CD-2SF Version Here:

JBC CD-2SF

This model replaces the discontinued CD-SQD CD-SQE model

Watch the CDS Precision Soldering Station in action here.



Product Composition

1 x CD Station
1 x T210-A General Purpose Handle
(Cartridges not included)

1 x Power Cord

1 x Brass Wool

1 x Sponge

More Information
General Specifications
Selectable Temperature 90 to 450°C/190 to 840°F
CONNECTIVITY
USB-B Software PC / Firmware update
Equipotential bonding Optional connection to EPA
RJ12 Connector
Earthing Fuse  F 1.25A
ESD/EOS
ESD safe
Tip to ground vol./resist

Meets and exceed

ANSI/ESD S20.20-2014 IPC J-STD-001F

POWER SUPPLY
Peak power 40 W - 23.5 V
Operating temp. range 10 to 50 ºC/ 50 to 122 ºF
DIMENSIONS AND WEIGHT
Compact Stations

170 x 176 x 145 mm / 2.70kg

6.69 x 6.93 x 5.71 / 5.95 lb

Package

234 x 234 x 258 mm / 3.27 kg

9.21 x 9.21 x 10.16 in / 7.21 lb



Write Your Own Review
You're reviewing:JBC CD-2SQF Precision Soldering Station
Your Rating
Customer Questions
Can I use a tweezer handpiece with the JBC CD stations?

Unfortunately, no. You would not be able to plug a tweezer handpeice into this station as the connection point is a different shape. If the application that you are undertaking requires the use of a tweezer handpiece, please see either the CP stations or NASE-2C.
