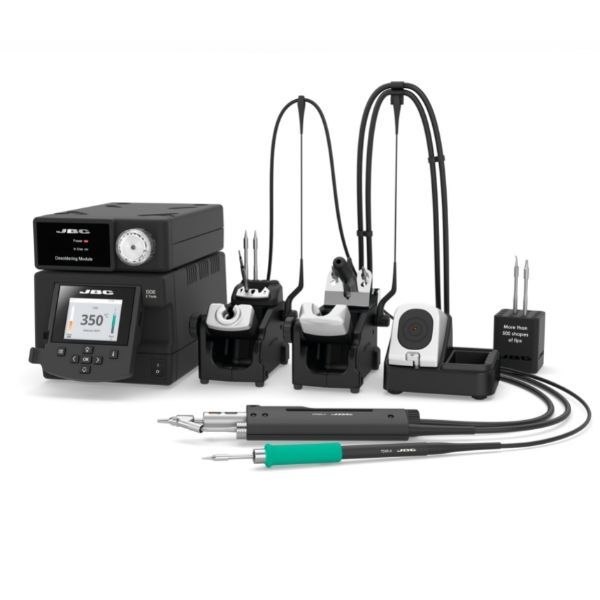

JBC DDSE-2QC 2 Tools DDE Station with Electric Pump

The JBC DDSE station is a complete solution with T245 General Purpose Handle and DR560 Desoldering Iron.

The DDE Control Unit manages up to 2 tools simultaneously and is fully compatible with 10 different JBC tools. Check below the complete list of compatible tools.

The MSE Electric Desoldering Module generates the vacuum needed to remove the molten solder from plated through holes and surface mount pads with the DR560.

It provides the best soldering quality thanks to JBC Most Efficient Soldering System and additionally Sleep & Hibernation modeshelp to extend life of tips.

It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.

With the practical Cartridge Holder SCH-A the different cartridges are always stored nearby.

Cartridges not included.

Modular System:
DDE
 MSE-A
Tools:
T245-A
DR560-A
Stands:
SCH-A
 AD-SE
 DR-SE
Cartridges:
Cartridges not included.
Cleaning Systems:
CL8499
More Information
General Specifications

SPECIFICATIONS

×

SELECTABLE PARAMETERS

Temperature

90 to 450 ºC / 190 to 840 ºF

Dynamic Soldering Profiles

Designed to avoid thermal shock when soldering Ceramic Chip components like MLCC,

this new and unique feature allows controlling the heating ramp up rate of the tool to gradually increase the temperature of the component through all the phases of the soldering process.

Up to 25 fully configurable soldering profiles can be stored.

SPECIAL FEATURES

Sleep and Hibernation mode

These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.

Max. and min. temperature:

Limit the temperature range in which the operator is allowed to work.

Temperatue levels

Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.

Soldering graphics

Real time visualization of tip temperature and power delivered to the solder joint during soldering process.

PIN protection

Keep station parameters protected against unauthorized access.

10 user interface languages

English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean, Chinese.

OTHERS

Vacuum

75% / 570 mmHg / 22.4 inHg

Flow rate

9 SLPM

CONNECTIVITY

USB-B (rear)

Software PC / Traceability

USB-A (front)

Firmware update Soldering Graphics management

Robot

RS-232 remote control or Smart Fume Extractor connection.

Equipotential bonding



ESD/EOS

ESD safe

Tip to ground resistance

<2 ohms

Tip to ground voltage

<2 mV RMS



POWER SUPPLY

Peak power

150 W per tool – 23.5 V

Voltage (AC)

ref. DDSE-1QC - 120 V

ref. DDSE-2QC - 230 V

ref. DDSE-9QC - 100 V

Ambient operating temp.

10 to 40 ºC / 50 to 104 ºF

DIMENSIONS AND WEIGHT

Control Unit

See individual modules

Package

368 x 474 x 195 mm / 10.39 kg

14.5 x 18.7 x 7.7 in / 22.91 lb



Write Your Own Review
You're reviewing:JBC DDSE-2QC 2 Tools DDE Station with Electric Pump
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?

JBC DDSE-2QC 2 Tools DDE Station with Electric Pump

SKU
415-DDSE-2QC
£1,350.00 (£1,620.00 inc VAT)
In Stock
7-10 working days delivery

A complete solution for fast and safe PCB repair
