Vision Engineering Makrolite II

Makrolite II provides exceptional full HD video imaging for any inspection application. With an extremely large field of view and a long working distance, just place your sample underneath the camera and zoom in (up to 230x).

  • Exceptional full-HD 1080p image quality and resolution.
  • Extremely large field of view – up to 240mm
  • Zoom magnification options up to 230x

Superior digital imaging relies on precision optical performance. Makrolite II combines more than 50 years’ optical expertise, with the power of digital imaging, to deliver crisp, high contrast live video images in full HD (1080p).

Makrolite’s extremely large field of view allows you to view samples up to 240mm wide, then zoom in to view samples in microscopic detail – without refocusing.

Robust and simple to operate, Makrolite II combines power and precision, making it ideal for a very wide range of precision magnification tasks in production areas, R&D, micro assembly, quality control, incoming and outgoing checks, dissection, presentation and much more.

Highlights

  • Exceptional full HD 1080p image quality and resolution.
  • Extremely large field of view – 220mm standard (240mm max.)
  • 30:1 zoom ratio, with standard magnification 2.5x – 130x (230x max.)
  • Full HD imaging, with no time lag so you can work absolutely 'live’.
  • Range of options, including image capture and simple on-screen measurement.

The power of full HD inspection

Full-HD image capture
Full-HD image capture

Superior imaging combined with simple operation is the key to Makrolite’s success and with a range of stand and system options, there is a tailored Makrolite II configuration for your individual requirements.

More Information
General Specifications
Specifications
Resolution Full HD 1080p (1920x1080)
Sensor 1/2.8" CMOS sensor
Camera output (console version) HD1080p / 30fps
Camera output (PC version) HD1080p / 30fps to PCIe card
Focus Auto / manual
Illumination Adjustable LED illumination
Power supply 100/240V, 50/60Hz
Recommended monitor* 16:9 | DVI & HDMI |24” or larger
Response time: 5ms | Signal: HD 1080p

* Available with, or without monitor.

Optical data

1080p resolution (with 24” monitor)

Lens
(52mm)
Working Distance** Field of View
Min. Magnification
Field of View and Max. Magnification
Optical Zoom Digital Zoom
DIOP 4D 200mm 240mm at 2x 12mm at 45x  6mm at 90x
DIOP 5D* 190mm 220mm at 2.5x  9mm at 60x  4mm at 130x
DIOP 5D + 4D 100mm 120mm at 4x  4mm at 130x  2mm at 230x
DCR250+
Bagues 43/ 52
110mm 50mm at 10x  5mm at 100x  2.5mm at 210x

* standard option

** at default focus position



Dimensions

Makrolite II (Bench Stand)

  • A = 330 mm
  • B = 285 mm
  • C = 240 mm

Makrolite II (Boom Stand)

  • A = 485 mm
  • B = 275 mm
  • C = 395 mm

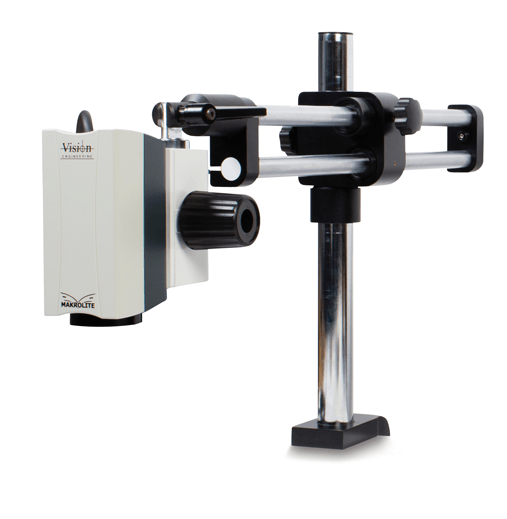

Makrolite II (Double boom stand)


  • A =  405 mm
  • B =  670 mm
