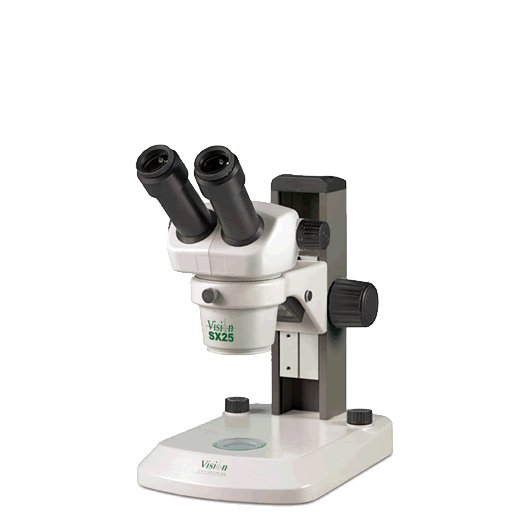

Vision Engineering SX25 Entry Level Stereo Zoom Microscope

SX25 Stereo Microscope Body: 4.5:1 Zoom Body.

Requires eyepiece and a stand.

Entry-Level Stereo Microscope

Low cost and high quality, the SX25 entry-level zoom stereo microscope delivers performance, flexibility and reliability. Quality optics ensures superb stereo viewing.

  • 10x – 45x magnification (180x max.)
  • Low cost, robust, high quality binocular stereo microscope
  • Range of stand options to suit requirements

Entry-Level Stereo Microscope

The SX25 is a low cost, high quality stereo microscope, designed to provide value without compromising performance.

With more than 60 years experience in design and manufacture of high performance optical systems, Vision Engineering’s SX25 stereo microscope delivers performance, flexibility and reliability.

Quality optics ensure the SX25 delivers high resolution, flat field imaging, making it ideal for routine industrial and life science work. It is the first step in the SX family of quality stereo microscopes.

A range of stand options and accessories allow tailoring to suit individual requirements.

Highlights

  • 10x – 45x* (4.5:1 zoom ratio) stereo zoom magnification (180x max.)
    (* with standard 1x objective)
  • Low cost stereo microscope with high quality optics
  • Precision optics deliver high resolution and flat field
  • Long-life (up to 6,000 hours), true colour LED illumination
  • Long working distance and large depth of field
  • Robust and easy to use

Bench Stand

  • Low-profile base optimises ergonomics for reduced operator fatigue
  • Built-in transformer with intensity adjustment for both surface and substage illumination

Boom Mount

  • Stable platform base, or for mounting directly to user’s work surface
  • Enhanced freedom of movement



Dual Arm Boom

  • Designed specifically for applications requiring extended reach, without compromising stability
  • Stable platform base, or for mounting directly to user’s work surface
  • Easy adjustability allows precise positioning and alignment

A wide range of accessories are available to complement the SX family products to cater for almost any situation.

LED ring light

  • For use with bench stand variant, where additional surface illumination is required (standard option with articulated arm and boom mount variants).



Polarisation set

  • Useful accessory when used for material science, metallurgy, petrology, as well as many geological and pharmaceutical applications. Polarising filters can be accommodated with bench stand variant.
SX25 Stereo Microscope Body: 4.5:1 Zoom Body. Requires eyepiece and a stand.
More Information
General Specifications

To discuss your particular requirements in further detail, please contact us.

Optical data

Eyepieces Objective Lenses Zoom Range Working Distance
10x/20 E.W. 0.5x* 5x – 22.5x 180mm
15x/16 W.F. 0.5x* 7.5x – 33.8x 180mm
20x/11 W.F. 0.5x* 10x – 45x 180mm
10x/20 E.W.. 0.75x 7.5x – 33.8x 120mm
15x/16 W.F. 0.75x 11.3x – 50.6x 120mm
20x/11 W.F. 0.75x 15x – 67.5x 120mm
10x/20 E.W. 1.0x 10x – 45x 97mm
15x/16 W.F. 1.0x 15x – 67.5x 97mm
20x/11 W.F. 1.0x 20x – 90x 97mm
10x/20 E.W. 2.0x 20x – 90x 30mm
15x/16 W.F. 2.0x 30x – 135x 30mm
20x/11 W.F. 2.0x 40x – 180x 30mm

* stand extension required when using 0.5x objective lens with bench stand model to accommodate increased working distance.

Technical Data

  • Greenough stereo microscope
  • Zoom ratio 4.5:1
  • Interpupillary distance adjustment (52 to 75mm)
  • Eyepiece dioptre indexing
