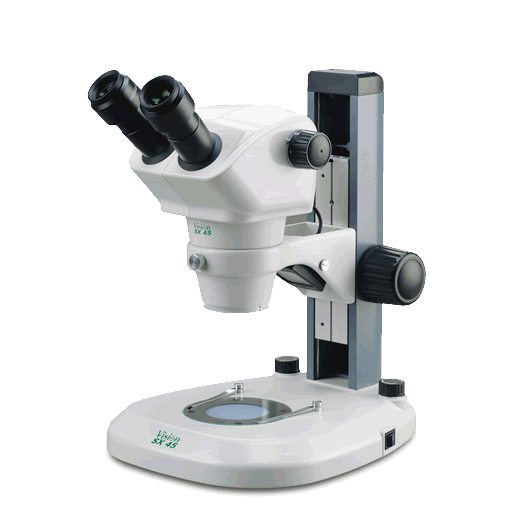

Vision Engineering SX45 Entry Industrial Stereo Zoom Microscope

SX45 Stereo Microscope Body: 6.3:1 Zoom Body.

Requires eyepiece and a stand.

Industrial Stereo Microscope

The SX45 industrial inspection stereo microscope with its extra-long working distance, precision optics and compact design is the perfect solution to many industrial, manufacturing and biological applications.

  • 8x – 50x magnification (200x max.)
  • Extra-long working distance
  • Wide range of configurations

Highlights

  • Affordable stereo zoom microscope with first-class performance
  • 8x – 50x* (6.3:1 zoom ratio) click-stop stereo zoom magnification (200x max.)
  • Long-life (up to 6,000 hours), true colour LED illumination
  • Wide range of options and configurations
  • Extra long working distance (115mm*)
  • Very rugged, easy to use and simple to maintain* with standard x1.0 objective

Industrial Stereo Microscope

With more than 60 years experience in design and manufacture of high performance optical systems, Vision Engineering’s SX45 delivers value, performance and flexibility.

The SX45 provides high quality stereo viewing, ideal for both industry and life science applications.

Perfect for manufacturing assembly, inspection, quality control, and on the shop- floor, the SX45’s extra-long working distance is great for manipulation, re-work, dissection, or simple inspection tasks.

Additionally, a wide range of stand options and accessories allow tailoring to suit individual requirements.

Bench Stand

  • Compact and versatile
  • Low-profile base optimises ergonomics for reduced operator fatigue
  • Built-in transformer with intensity adjustment for both surface and substage illumination

Boom Mount

  • Ideal for larger specimens
  • Stable platform base, or for mounting directly to user’s work surface
  • Enhanced freedom of movement

Articulated Arm

  • For enhanced flexibility
  • Low-profile base optimises ergonomics for reduced operator fatigue
  • Multi-point adjustability allows precise positioning and alignment

Floor Stand

  • Perfect for inspection of large or immovable subjects
  • Height and reach adjustments for inspection of different sized or positioned samples
  • Articulated adjustable horizontal arm
  • Heavy duty wheeled base provides mobility to move around practice or lab.

Stereo zoom Microscope Accessories

A wide range of accessories are available to complement the SX family of products.

Image Capture, Archive & Documentation

  • Trinocular head option permits the use of digital or video camera. (Only available on the SX45-TR model)
  • Modular multimedia solutions are available for image archiving, acquisition, processing, analysis and documentation.

LED Ring light

  • For use with bench stand variant, where additional surface illumination is required (standard option with articulated arm and boom mount variants).

Floating stage

  • For use with bench stand models, the floating stage provides smooth sample control, ideal for inspection tasks.

Polarisation Set

  • Useful accessory when used for material science, metallurgy, petrology, as well as many geological and pharmaceutical applications.
  • Polarising filters can be accommodated with bench stand variant.
More Information
General Specifications

To discuss your particular requirements in further detail, please contact us.

Optical data

Eyepieces Objective Lenses Zoom Range Working Distance
10x/22 F.N. 0.5x* 4x – 25x 220.6mm
10x/22 F.N. 1.0x 8x – 50x 115.0mm
10x/22 F.N. 2.0x 16x – 100x 57.5mm
15x/16 F.N. 0.5x* 6x – 37.5x 220.6mm
15x/16 F.N. 1.0x 12x – 75x 115.0mm
15x/16 F.N. 2.0x 24x – 150x 57.5mm
20x/13 F.N. 0.5x* 8x – 50x 220.6mm
20x/13 F.N. 1.0x 16x – 100x 115.0mm
20x/13 F.N. 2.0x 32x – 200x 57.5mm

Technical Data

  • Greenough stereo zoom microscope
  • Zoom ratio 6.3:1
  • Observation tube inclination 45°
  • Interpupillary distance adjustment (52 to 75mm)
  • Dioptre adjustment on both eyepieces

Dimensions

Bench Stand

  • A = 240mm
  • B = 285mm
  • C = 300mm
  • D = 215mm max., less working distance *

* with 1x objective

Boom Mount

  • E = 275mm
  • F = 395mm
  • G = 485mm
  • H = 442mm max.
  • I = 285mm max., less working distance *

* with 1x objective

Articulated Arm

  • J = 600mm max., less working distance *
  • K = 950mm max.
  • L = 305mm (removable)

* with 1x objective
