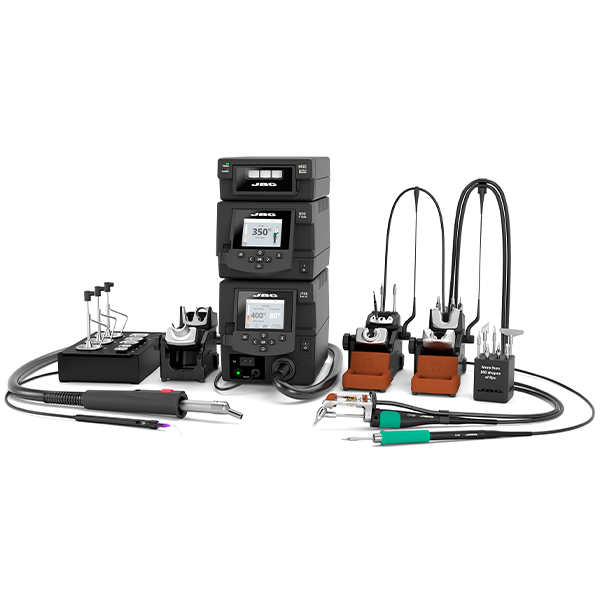

JBC RMSD Station - Complete Rework System with DT530

RMSD Station - Complete Rework System with DT530

Your fastest and safest option for soldering and rework - which includes hot air.

The RMSD is perfect for delivering clean and precise results across multiple soldering applications.

it includes all of the intelligent heat management technology that JBC are synonymous for.



Features

  • Utilises the DDE - 2 tool control unit. This allows the user to manage up to 2 tools simultaneously. The DDE is compatible with 10 different JBC tools and can deliver up to 150W per tool.
  • Comes equipped with the DT530 angled desoldering iron, T245 general purpose handle, JTT heater hose set.
  • The upgraded MSE-B is included, with improved suction power. This reaches up to 85% vacuum, ensuring precise and efficient solder removal.
  • JTSE Hot Air Station controls the rework task with temperature and airflow profiles.
More Information
MPN
RMSD-2QB
General Specifications

JTSE Control Unit

Peak Power 700W
Selectable Temperature 150 to 450°C
Air Flow Regulation 5 to 50 SLPM
Vacuum 30% / 228 mmHg / 9 inHg
Profiles 25 (up to 10 steps for each), 1 preset profile
Type K TC Connector 1 for Control & Protection
ESD Safe Meet ANSI / ESD S20.20-2021
Equipotential Bonding Connection to EPA
USB-A Firmware update / graphics & profiles
USB-B PC Communications
RJ12 Connector Remote control or FAE Fume Extractor connection
Pedal Connector Tool control



DDE Control Unit

Nominal Power 200W
Peak Power 150W per tool
Selectable Temperature 90 to 450°C
Temperature Accuracy ±3%
Temperature Adjustment ±50°C through station setting menu
ESD Safe Meet ANSI/ESD S20.20-2021
Equipotential Bonding Optional connection to EPA
Tip-to-ground resistance <2 ohms
Tip-to-ground voltage <2 mV RMS
Ambient Operating Temp 10 - 40°C
USB-A Firmware update / graphics and profiles
USB-B PC communications
FAE / Robot Connector Remote control or FAE fume extractor connection



MSE Module

Power 42W
Vacuum 85% / 640 mmHg / 25.4 inHg
Flow Rate 35 SLPM
Ambient Operating Temp 10 - 40°C
Pedal Connector Yes
ESD Safe Meet ANSI/ESD S20.20-2021



Weight & Dimensions

Control Unit 232 x 148 x 295mm / 13.85 kg
Package 615 x 368 x 637mm / 19.83 kg
Write Your Own Review
You're reviewing:JBC RMSD Station - Complete Rework System with DT530
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?

JBC RMSD Station - Complete Rework System with DT530

SKU
415-RMSD-2QB
MPN
RMSD-2QB
£4,270.00 (£5,124.00 inc VAT)
