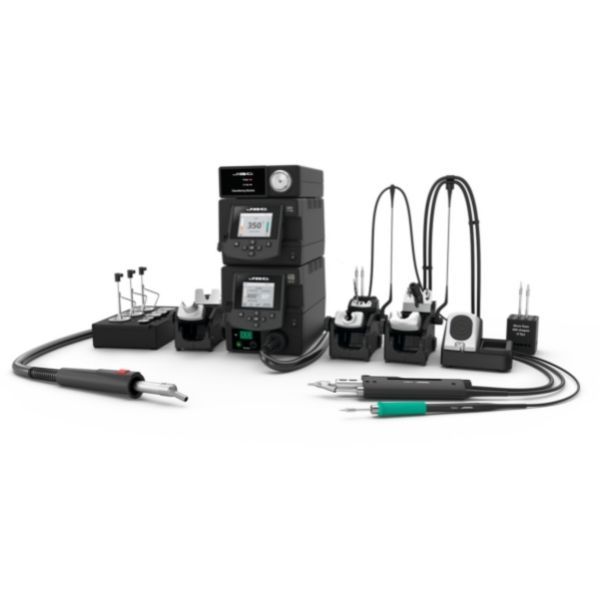

JBC RMSE-2QE Complete Rework Station with Electric Pump

£2,750.00 (exc VAT) (£3,300.00 inc VAT)

RMSE-QComplete Rework Station with Electric Pump

Zoom Out
Zoom In

The quickest and safest solution for soldering and rework, also using Hot Air. It consists of stackable modules and all the necessary accessories to make your job easier.

The RMSE features all the Excellence range benefits. It provides the best soldering quality thanks to JBC Most Efficient Soldering System and additionally Sleep & Hibernation modes help to extend life of tips.

The DDE manages up to 2 tools simultaneously and is fully compatible with 10 different JBC tools. Check below the complete list of compatible tools.

The MSE Electric Desoldering Module is indispensable for a complete desoldering process.

The JTSE Precision Hot Air Station controls the rework task using temperature and air flow profiles.

The RMSE works simultaneously with the DR560 Desoldering Iron, the T245 Handle and the JT-TA Heater Hose Set.

Product Composition:

- 1 x JTSE Hot Air Station
- 1 x DDE 2 Tools Control Unit
- 1 x MSE-A Electric Desoldering Module for DDE & DME
- 1 x T245-A General Purpose Handle (Cartridge not included)
- 1 x DR560-A Desoldering Iron
- 1 x JT-TA Heater Hose Sets
- 1 x AD-SE Stand for T210 & T245 Handles
- 1 x DR-SE Stand for DR560
- 1 x JT-SE Stand for JT heater
- 1 x SCH-A Cartridge Holder
- 1 x CL8499 Manual Tip Cleaner
- 1 x JN2015 Nozzle for JT heater
- 1 x JN2012 Nozzle for JT heater
- 1 x JN2020 Nozzle for JT heater
- 1 x T260-A Pick & Place
- 1 x 0008752 Extractor Desk
- 1 x PH218 Thermocouple Type K
- 1 x PH217 Kapton tape

(Cartridges not included)

Voltages:

100 V - Ref. RMSE-9QE
120 V - Ref. RMSE-1QE
230 V - Ref. RMSE-2QE

Premium Stations: JTSE
Modular System:
DDE, MSE-A
Tools:
T245-A
DR560-A
JT-TA
Stands:
AD-SE,DR-SE,JT-SE,SCH-A
Cleaning Systems:
CL8499
Accessories:
JN2015
JN2012
JN2020
T260-A
0008752
Consumables:
PH218, PH217

General Specifications

Temperature (DDE) 90 to 450 ºC / 190 to 840 ºF
ITemperature (JTSE) 150 to 450 ºC / 300-840 ºF
Air Flow (JTSE) 5 to 50 SLPM
Dynamic Soldering Profiles
Designed to avoid thermal shock when soldering Ceramic Chip components like MLCC (DDE), and for automatic soldering of SMD components (JTSE), this new and unique feature allows controlling the heating ramp up rate of the tool to gradually increase the temperature of the component through all the phases of the soldering process.Up to 25 fully configurable soldering profiles can be stored.
Operation modes (JTSE) Heating / Cooling


SPECIAL FEATURES
Sleep and Hibernation mode(DDE) These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.
Max. and min. temperature Limit the temperature range in which the operator is allowed to work.
Temperature levels (DDE)
Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.
Soldering graphics Real time visualization of tip temperature and power delivered to the solder joint during soldering process.
PIN protection Keep station parameters protected against unauthorized access.
10 user interface languages English, German, Spanish, French, Italian, Portuguese, Russian, Japanese, Korean, Chinese.


OTHERS
Vacuum (MSE) 75% / 570 mmHg / 22.4 inHg
Flow rate (MSE) 9 SLPM
Vacuum (JTSE)
30% / 228 mmHg / 9 inHg
Type K thermocouple (JTSE)
Plug an external TC to the controller and place it close to the component to be soldered or reworked to have the most precise temperature control regardless of the distance to the nozzle.
It can be used both for Control and Protection purposes.
PIN protection Keep station parameters protected against unauthorized access.


CONNECTIVITY
USB-B (rear) Software PC / Traceability
USB-A (front)
Firmware update.
Soldering Graphics / Profiles management.
Robot
RS-232 remote control or Smart Fume Extractor connection
Pedal (JTSE)
Optional tool control
Aux (JTSE) Peripheral expansion


ESD/EOS
ESD safe
Tip to ground resistance
<2 ohms
Robot
<2 mV RMS


POWER SUPPLY
Peak Power (DDE) 150 W per tool – 23.5 V
Peak Power (JTSE)
700W
Voltage (AC)
ref. RMSE-2QE - 230 V
